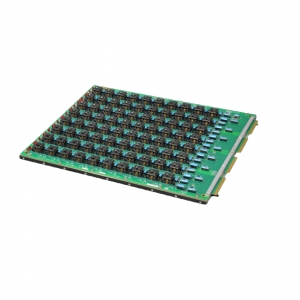

EDA designs and produces Burn-in Boards.

EDA BIB Standards are:

STANDARD EDA HD

• • Standard format: 570mm x 440mm (22.437” x 17.322”)
  • LONG format: 570mm->640mm
  • 480 finger contacts (4 x 120)
  • Max current : 55 A

STANDARD EDA HD/H

• • Additional 44 power contacts (2 x 22)
  • Up to 108 A on VBTS-M system

STANDARD EDA HD/H3

• • Additional 11 power contacts (1 x 11)
  • Single DUT Thermal Control (iSocket feature)

STANDARD EDA HD/H High Power

• • Additional 504 High Power connectors (4 x 126)
  • Up to 108 A + 640 A on VBTS-M-HP system

EDA is also capable to design and produce other BIB standards, starting from technical specifications or gerber files & BOM.

For info, pls send a direct request to This email address is being protected from spambots. You need JavaScript enabled to view it..

Analysis and design of electronic boards and test programs for the Qualification of new semiconductor devices in respect of customer design spec and reliability engineer

• HTOL
• PTC
• HTRB
• THB
• IOL StressTest
• HAST
• CHIPBOARD
• BURN-IN
• TDBI     Test During Burn In

Support to start-up of qualification test of new semiconductor devices at customer reliability labs

Analysis and design of electronic boards and test programs for the BI or TDBI of new semiconductor devices in respect of Customer request

Support to start-up of production of new semiconductor devices test program at customer production plants

Infrared thermal analysis for correct trial temperature set

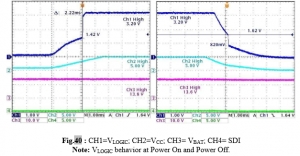

Signal Integrity analysis

Power Supply Integrity Analysis

Debug Report Generation

Worldwide Engineering support at customer site
